Kraftspeicher SERVO-DRIVE AVENTOS HS top mit Spanplattenschrauben

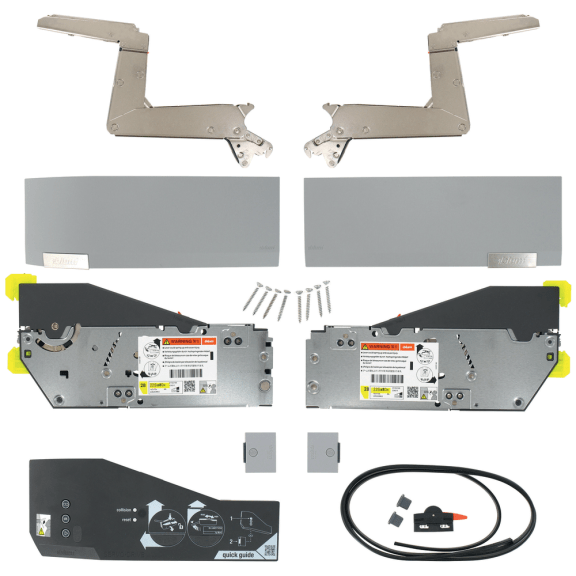

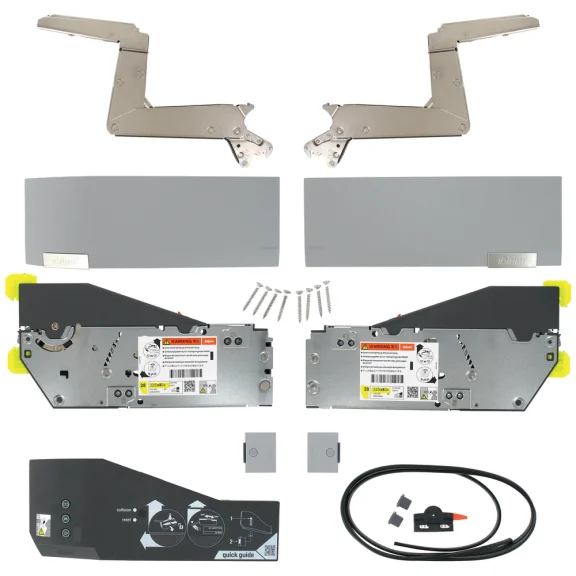

Set bestehend aus:
- 2 symmetrische Kraftspeicher.
- 1 Paar Hebel (links/rechts).
- 1 Satz Abdeckkappen (links/rechts).
- 1 Motor SERVO-DRIVE AVENTOS.
- 2 Schalter.
- 6 Distanzpuffer Ø 5 mm.
- 1 Kabel 1.500 mm, 1 Verbindungsknoten und 2 Endstücke.
- 8 Spanplattenschrauben Ø 4 x 35 mm.
Korpushöhe: 350- 800 mm.
Max. Korpusbreite: 1800 mm.
- 2 symmetrische Kraftspeicher.
- 1 Paar Hebel (links/rechts).
- 1 Satz Abdeckkappen (links/rechts).
- 1 Motor SERVO-DRIVE AVENTOS.
- 2 Schalter.
- 6 Distanzpuffer Ø 5 mm.
- 1 Kabel 1.500 mm, 1 Verbindungsknoten und 2 Endstücke.
- 8 Spanplattenschrauben Ø 4 x 35 mm.
Korpushöhe: 350- 800 mm.
Max. Korpusbreite: 1800 mm.
E-code E3B
Technische Dokumente
Optionen auswählen
Alle Artikel
Anmelden, um Preise zu erfahren und das Produkt zu kaufen
AnmeldenBeschreibung
Set bestehend aus:
- 2 symmetrische Kraftspeicher.
- 1 Paar Hebel (links/rechts).
- 1 Satz Abdeckkappen (links/rechts).
- 1 Motor SERVO-DRIVE AVENTOS.
- 2 Schalter.
- 6 Distanzpuffer Ø 5 mm.
- 1 Kabel 1.500 mm, 1 Verbindungsknoten und 2 Endstücke.
- 8 Spanplattenschrauben Ø 4 x 35 mm.
Korpushöhe: 350- 800 mm.
Max. Korpusbreite: 1800 mm.
Alle Artikel
Artikel | Ausführung | Möbelkorpushöhe (mm) |
---|---|---|
AVE4322SERVBL | weiß | 350-540 (2-12,5 kg) |
AVE4325SERVBL | weiß | 480-660 (2,75-15,25 kg) |
AVE4328SERVBL | weiß | 650-800 (3,5-18,5 kg) |
AVE4322SERVGR | hellgrau | 350-540 (2-12,5 kg) |
AVE4325SERVGR | hellgrau | 480-660 (2,75-15,25 kg) |
AVE4328SERVGR | hellgrau | 650-800 (3,5-18,5 kg) |
AVE4322SERVGRA | anthrazitgrau | 350-540 (2-12,5 kg) |
AVE4325SERVGRA | anthrazitgrau | 480-660 (2,75-15,25 kg) |
AVE4328SERVGRA | anthrazitgrau | 650-800 (3,5-18,5 kg) |
